Retrofit of Lockformer Vulcan 2900 Plasma HVAC ductwork machine - table


CHICHOinc retrofits Lockformer Vulcan 2900 Plasma table within 48 hours.
Many businesses have used our services to retrofit their Lockformer Vulcan 2900 Plasma HVAC ductwork machines. Lockformer Vulcan 2900 Plasma HVAC ductwork table is easily and quickly retrofitted.
Lockformer Vulcan 2900 plasma table has a newer electronic equipment compared to Vulcan 1800 and Vulcan 2000 Lockformer Plasma machines but same mechanics. In the process of perfecting the electronic equipment in the period of 5-10 years the machines on the market with that mechanical body have been named Vulcan 2900 and the next series Vulcan 1000B, 3000, 3100D, depending on the type of electronic equipment mostly. Unfortunately, “perfecting” the electronic equipment in Lockformer’s machinery since Vulcan 2900 comes down to the company’s extremely commercial policy. An example of this is North East Electronics – NEE CNC controller with built-in servo drive and interfaces. North East Electronics (British company) has been out of business since 2003. Cleveland Machine Control CMC, a company which continued the production of this controller cancelled the production and service a few years later. At present no other company supports the NEE CNC controller – parts and service.

We offer free 24/7, over the phone (+1 225 772 8326), troubleshooting of your Lockformer Vulcan 2900 Plasma HVAC ductwork table.

Do not pay others lots of $$$ for a new or retrofitted machine - you can get the same functionality and quality from CHICHOinc for about half the price!
Give your machine 20 more years in the business - same functionality, same quality and same CAD/CAM software for less!
It is easy - contact us for more details.

Basic equipment for Vulcan 2900 Plasma HVAC DUCT machine - table

1. CNCs used for Lockformer Vulcan 2900 Plasma table:

  • North East Electronics – Lockformer NEE CNC controller, Cleveland Machine Control CMC – Lockformer Cutter 2 CNC and Lockformer Cutter 3 CNC, AMC logo CNC

2. Servo Drives used for Lockformer Vulcan 2900 Plasma table:

Note: Lockformer Vulcan 2900 plasma cutter CNC has built-in 2 or 3 axes servo drive (or 4 axes servo drive for Lockformer glass cutters, with rotation head)

2.1 Retrofit of Lockformer Vulcan 2900 plasma cutter with CHICHOinc for 2 axes machine

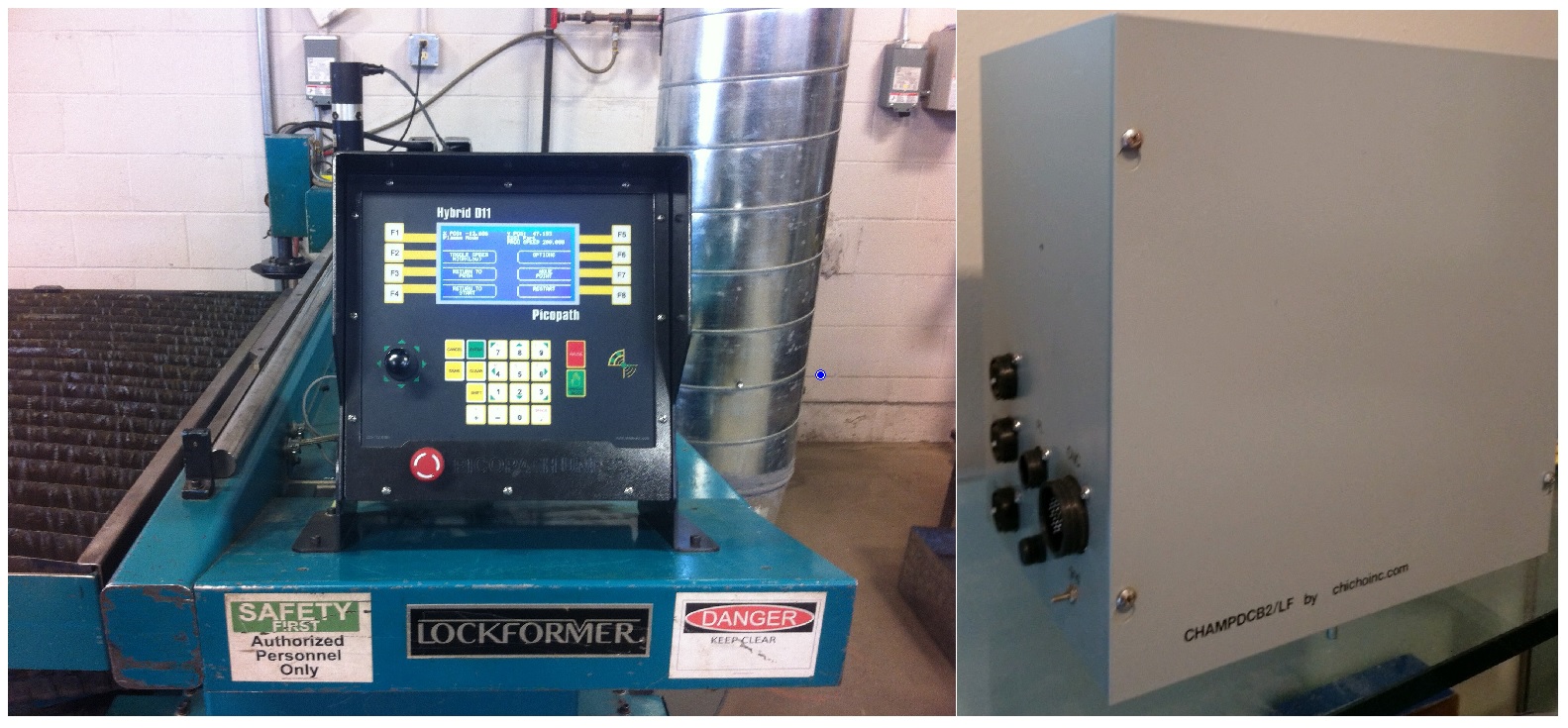

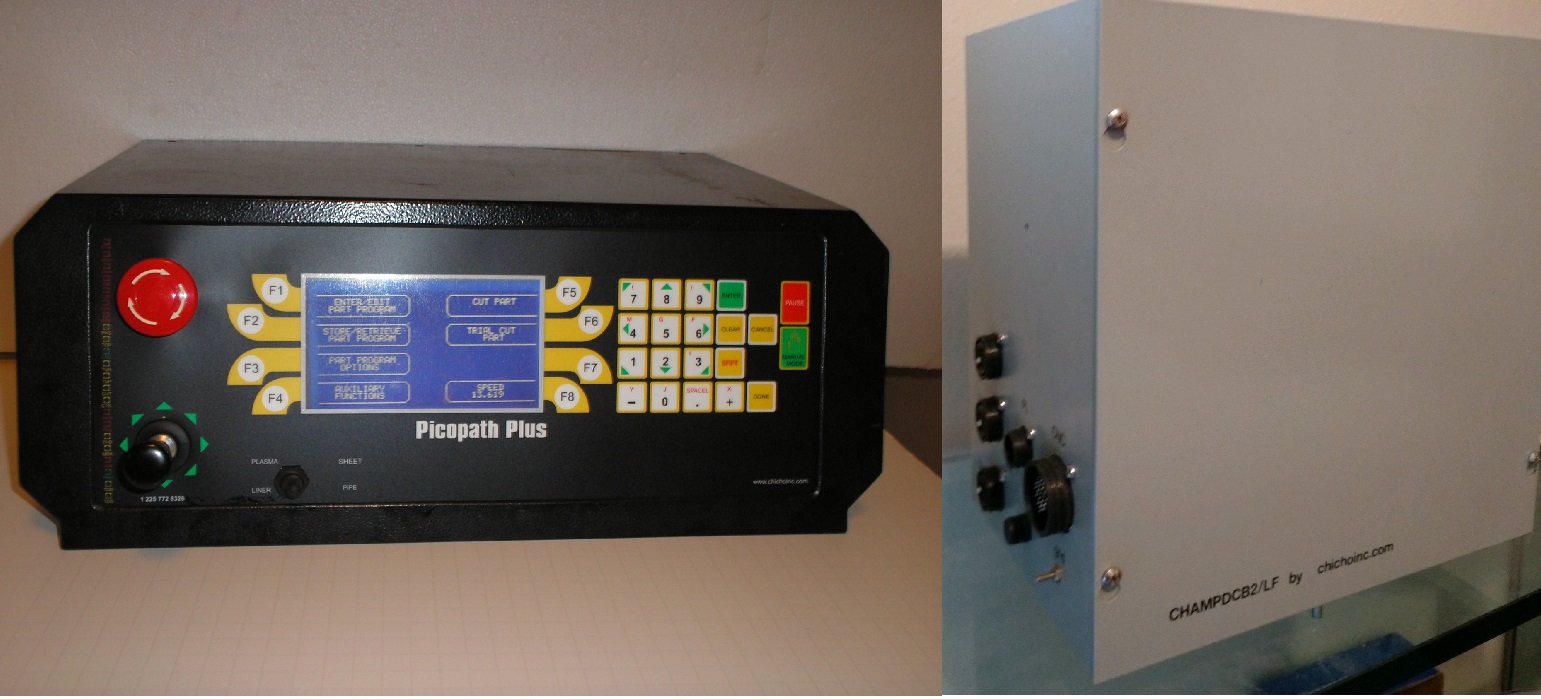

  • Picopath Plus CNC with new CHAMPDCB2LF Servo Drive, by CHICHOinc
  • Picopath UNI P1 CNC with new CHAMPDCB2LF Servo Drive, by CHICHOinc.
  • Picopath UNI 2S v. NEE CNC with build in Servo Drive, by CHICHOinc.
  • The best and faster deal - “All in one box” equipment for Lockformer Vulcan 2900 Plasma table 12" x 12" x 8" Picopath UNI 2S CNC With a new cable set, 2 homing SW and 2 limit SW – DONE IN 2 HOURS

2.2 Retrofit of Lockformer Vulcan 2900, Vulcan 3100D plasma cutter with CHICHOinc for 3 axes machine

  • Picopath Plus CNC with new CHAMPDCB3SLF Servo Drive, by CHICHOinc
  • Picopath UNI P1 CNC with new CHAMPDCB3LF Servo Drive, by CHICHOinc.

3. Motors and encoders for Lockformer Vulcan 2900 Plasma table

Call us for details.

4. Mechanics for Lockformer Vulcan 2900 Plasma table

Call us for details.

5. Communication equipment for Lockformer Vulcan 2900 Plasma table

For problems with existing communication equipment – call us.
CHICHOinc manufactures a low cost ($356 plus 1$/1' optical cable – total) complete optical communication set – Plug-and-Play for any model cutting machine.

6. Super Deal "All in one box equipment" for Lockformer Vulcan 2900 Plasma table

  • 12" x 12" x 8" Picopath UNI 2S CNC
    With a new cable set, 2 homing SW and 2 limit SW – DONE IN 2 HOURS
